The Ultimate Guide to Hard Hat Safety: Types, Classes, and Standards

Understanding Hard Hat Requirements and OSHA Regulations

Hard hats are a crucial component of personal protective equipment (PPE) in the construction industry. According to the Occupational Safety & Health Administration (OSHA), workers must wear hard hats “when working in areas where there is a potential for injury to the head from falling objects” or where there’s a risk of exposure to electrical conductors that could contact the head.

OSHA-approved hard hats meet the minimum criteria established by the American National Standards (ANSI) and the International Safety Equipment Association (ISEA), in accordance with the most current ANSI/ISEA Z89.1-2014 (R2019) standard. In Canada, hard hats must also comply with the Canadian CSA Z94.1-2005 standards.

Hard Hat Types: Understanding Impact Protection

ANSI divides protective helmets into two main types based on their impact protection capabilities:

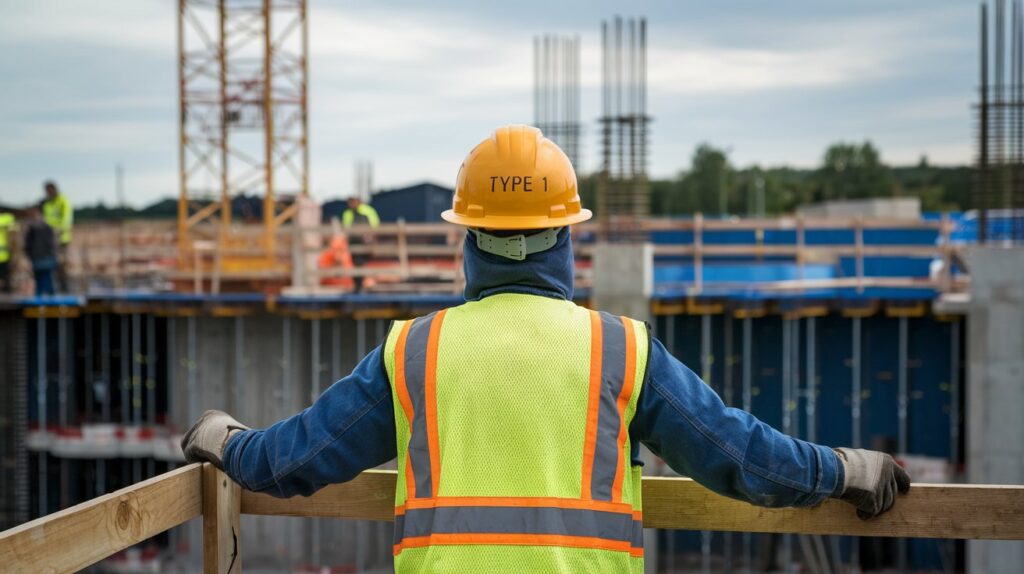

a photo of a construction site with a worker weari YPj1oUl6Q4 R0vjmQCUQlg N4HSNNuoR36Y72Zun77tFQ

Type I Hard Hats

Type I hard hats are designed to reduce the force of impact from blows to the top of the head. These are suitable for protecting against falling objects directly above the worker. An example of a popular Type I hard hat is the MSA V-Gard Hard Hat.

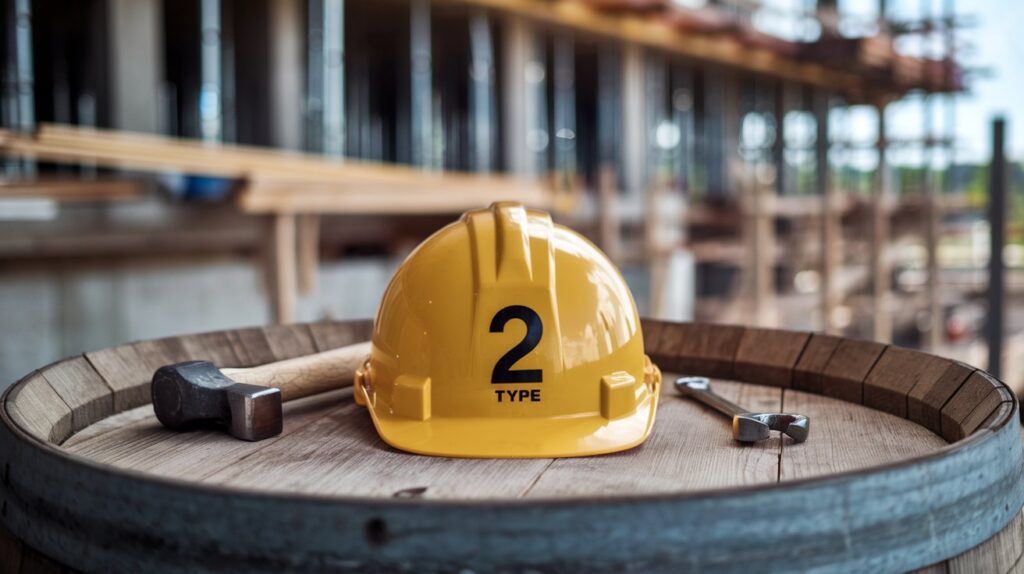

a photo of a type 2 construction yellow hard hat t HvD2iWtFSI6aCe9wPAcHLQ igwFJ NzRiKwz 1nlIEGoQ

Type II Hard Hats

Type II hard hats offer more comprehensive protection. They’re designed to reduce the force of lateral impact from blows to the top or sides of the head. Type II hard hats typically feature a thick high-density foam lining and specialized suspension systems. The MSA Super V® Hard Hat is an example of a Type II hard hat.

Electrical Classes: Choosing the Right Protection Level

According to ANSI/ISEA Z89.1-2014 (R2019) and Canadian CSA Z94.1-2005 standards, hard hat electrical performance is categorized into three classes:

Class E (Electrical) Hard Hats

  • Designed for high voltage environments
  • Offer dielectric protection up to 20,000 volts (phase to ground)
  • Commonly used by utility workers
  • Example: MSA Topgard® Hard Hat

It’s important to note that this voltage protection is designated to the head only and doesn’t indicate protection for the user’s entire body. Formerly associated with a “Class B” rating, Class E hard hats may also be considered to have a Class G (General) rating due to their higher level of protection.

Class G (General) Hard Hats

  • Provide protection in low voltage situations
  • Offer dielectric protection up to 2,200 volts (phase to ground)
  • Most commonly sold hard hat type
  • Example: MSA Skullgard Hard Hat

As with Class E, this voltage protection is for the head only. Class G hard hats were formerly categorized as “Class A.”

Class C (Conductive) Hard Hats

  • Not designed for electrical protection
  • May include vented options for increased breathability
  • Suitable for environments without electrical hazards
  • Example: MSA V-Gard 500 Hard Hat

Class C hard hats may be made of conductive materials like aluminum or feature added ventilation for improved comfort.

How to Identify Your Hard Hat’s Type and Class

All ANSI/ISEA-compliant hard hats contain a certification label inside the shell. This label identifies the type and class standards the hard hat meets. If your hard hat’s label is missing or illegible, it’s time for a replacement.

Selecting the Appropriate Hard Hat for Your Work Environment

When choosing a hard hat, consider:

  1. The specific hazards in your workplace
  2. The level of impact protection required (Type I or Type II)
  3. The presence of electrical hazards and required voltage protection
  4. Comfort and fit for all-day wear
  5. Additional features like attachments for face shields or hearing protection

Maintaining Your Hard Hat’s Safety Performance

To ensure your hard hat continues to provide optimal protection:

  1. Inspect your hard hat regularly for cracks, dents, or other damage
  2. Clean your hard hat with mild soap and water
  3. Replace the suspension system as recommended by the manufacturer
  4. Store your hard hat in a cool, dry place away from direct sunlight
  5. Replace your hard hat according to the manufacturer’s guidelines, typically every 5 years

Latest Innovations in Hard Hat Technology

The hard hat industry continues to evolve, with new features improving safety and comfort:

  1. Integrated face shields and visors
  2. Built-in communication systems
  3. Smart hard hats with sensors to detect falls or impacts
  4. Improved ventilation systems for better comfort in hot environments
  5. Customizable designs for better visibility and team identification

Conclusion: The Importance of Proper Hard Hat Use

Selecting and properly using the right hard hat is crucial for workplace safety. By understanding hard hat types, classes, and standards, you can ensure that you and your team are adequately protected from head injuries and electrical hazards. Remember, a well-maintained and properly fitted hard hat can be the difference between a near-miss and a life-altering injury.
